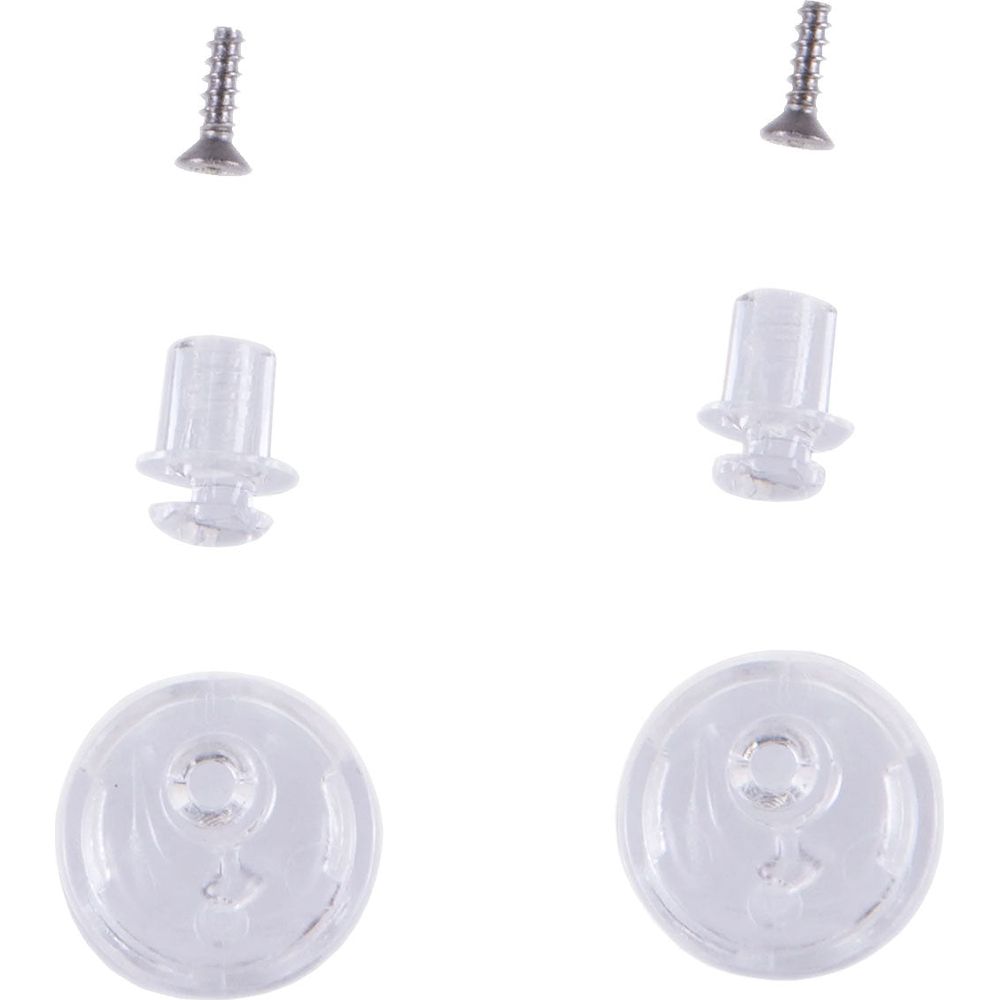

Alpinestars Supertech R10 AFHS-01 GEN1 Pinlock / Tear-Off Pin Set
Genuine Alpinestars replacement pin set for the original AFHS-01 outer shield used on the Supertech R10 helmet. The exact manufacturer reference is 8950724010.
Compatibility
- Compatible helmet and shield: Alpinestars Supertech R10, also called S-R10, fitted with the original AFHS-01 GEN1 outer shield.
- Selection: One size. Fitment is determined by shield generation rather than helmet size or shell group.
- Not confirmed for: The later Supertech R10 / Supertech R7 GEN2 or S-02 shield system. Alpinestars specifies a different tear-off and Pinlock system for GEN2.
Important Component Information
These pins provide the mounting and adjustment points used by the compatible AFHS-01 GEN1 tear-off and Pinlock systems. They are not the external shield, disposable tear-off films or Pinlock lens.
The separate transparent GEN1 tear-off pack is 8950824010. The separate DKS514 Pinlock 120XLT MaxVision clear inner anti-fog insert is 8951024001.
Fitting
Fit the pins only to an undamaged AFHS-01 GEN1 shield. Follow the shield and Pinlock fitting instructions, retain the original orientation, and adjust only enough to achieve the correct tear-off retention or Pinlock seal. Do not overtighten or distort the shield.
