Product Details

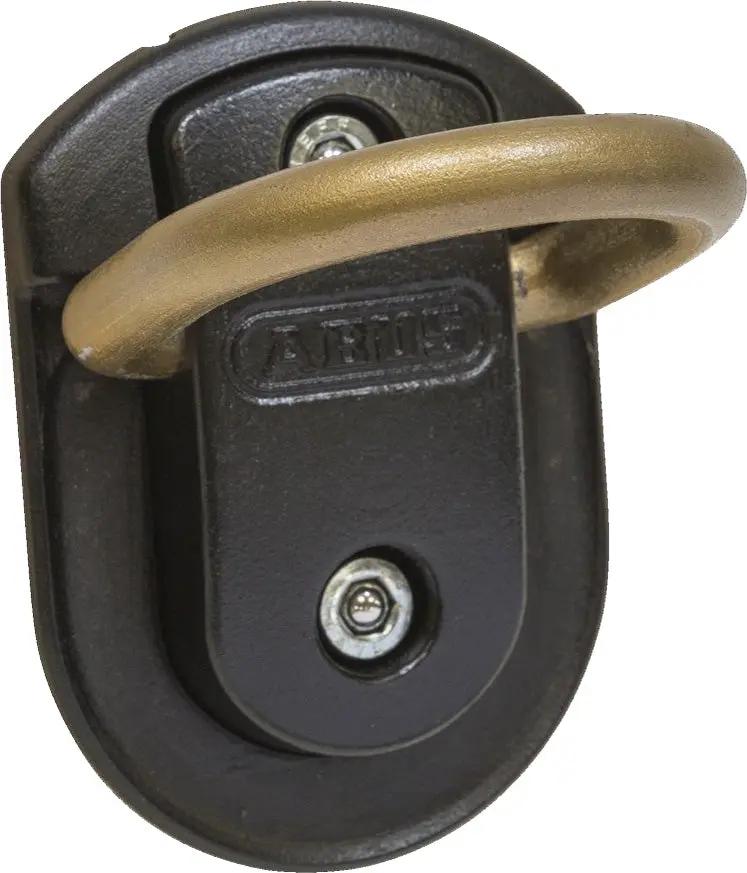

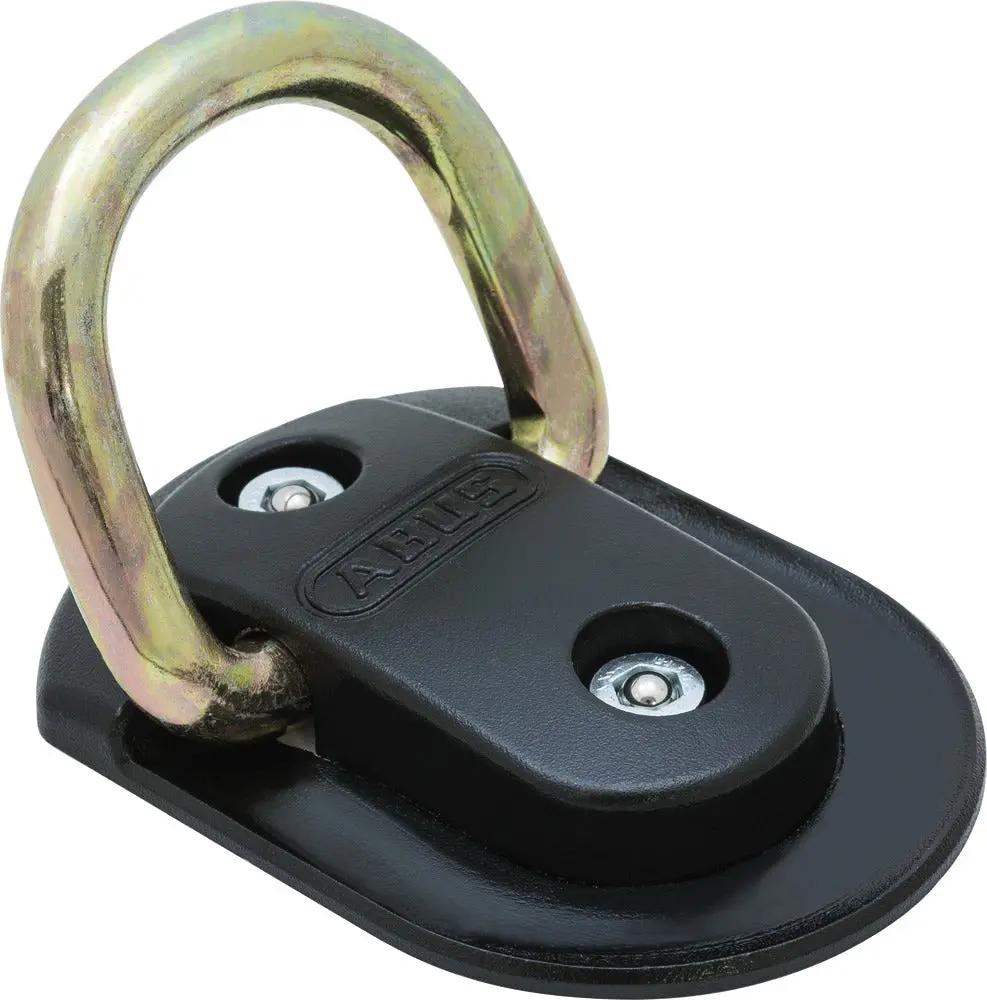

ABUS GRANIT WBA75 Motorcycle Wall / Floor Anchor provides a permanent locking point for a motorcycle, scooter or bicycle when there is no suitable fixed object nearby. It can be fitted to a suitable wall or floor in a garage, cellar or secure parking area and used with a compatible security chain or lock.
The compact WBA75 uses a 14 mm shackle made from specially hardened steel and provides 65 × 57 mm internal clearance. ABUS rates it at Security Level 15/20, making it a practical choice where the larger WBA100 is unnecessary or space is more limited.
Key features
- Permanent wall or floor anchor for motorcycles, scooters and bicycles
- 14 mm specially hardened-steel shackle
- ABUS Security Level 15/20
- 65 mm horizontal and 57 mm vertical internal clearance
- Compact 98 × 135 mm footprint
- ABUS mounting accessories included
- Made in Germany
Dimensions and specifications
| Model | GRANIT WBA75 |
| Overall dimensions | 98 mm wide × 135 mm high |
| Shackle diameter | 14 mm |
| Horizontal clearance | 65 mm |
| Vertical clearance | 57 mm |
| Weight | 850 g |
| ABUS security level | 15/20 |
| EAN | 4003318786068 |
Independent security classifications
- Sold Secure Powered Cycle Gold
- Sold Secure Pedal Cycle Diamond
- ART 4214
- SBSC certified
Security classifications describe the anchor itself. Always check any insurer's requirements for the complete locking setup, including the chain, lock, installation method and the part of the vehicle being secured.
Installation and everyday use
Install the WBA75 only into a strong, suitable wall or floor, following the supplied ABUS instructions. Mounting accessories are included, but the tools required for installation are not listed as supplied. If you are unsure about the substrate or installation, use a competent professional.
Measure the intended mounting area and the links of your chosen chain against the listed 65 × 57 mm clearance before ordering. The anchor creates a fixed point, while the chain and lock determine how the vehicle is attached to it.
What is included?
- ABUS GRANIT WBA75 wall / floor anchor
- ABUS mounting accessories
A security chain and lock are not included.
Questions and answers
Can the WBA75 be mounted on a wall?
Yes. ABUS specifies wall or floor installation using the supplied mounting accessories, provided the surface is suitable.
Is the WBA75 only for bicycles?
No. ABUS describes it for securing two-wheeled vehicles, and its current classifications include Sold Secure Powered Cycle Gold as well as Pedal Cycle Diamond.
What is the difference between the WBA75 and WBA100?
The WBA75 is the more compact and lighter option, with a 14 mm shackle, 65 × 57 mm clearance and ABUS Security Level 15/20. The WBA100 is larger and heavier, with a 16 mm shackle, 77 × 65 mm clearance and Security Level 20/20.
