Product Details

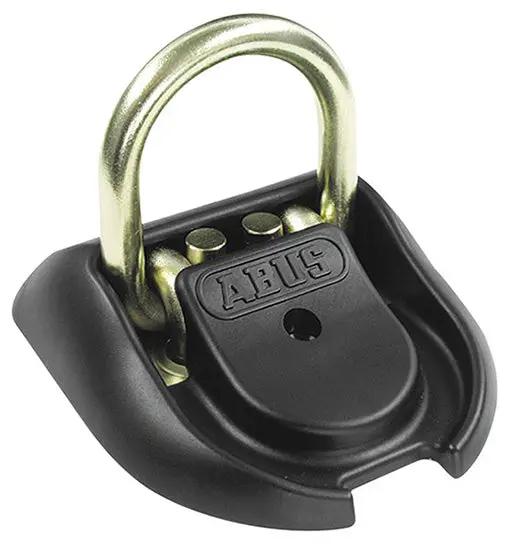

ABUS GRANIT WBA100 Motorcycle Wall / Floor Anchor creates a permanent locking point where there is no suitable fixed object. Designed for two-wheeled vehicles, it can be installed on a suitable floor or wall in a garage, cellar, courtyard or other secure parking area, then paired with a compatible chain or lock.
The WBA100 is ABUS's larger, highest-rated anchor in this family. Its 16 mm shackle is made from specially hardened steel, while the 77 × 65 mm internal clearance gives useful room for passing a compatible chain through the anchor. ABUS rates it at Security Level 20/20.
Key features
- Permanent wall or floor anchor for motorcycles, scooters and bicycles
- 16 mm specially hardened-steel shackle
- ABUS Security Level 20/20
- 77 mm horizontal and 65 mm vertical internal clearance
- Flat design with a protective plastic cover
- Can be driven over when correctly installed and the shackle is folded flat
- Weatherproof construction for indoor or outdoor installation
- ABUS mounting accessories included
- Made in Germany
Dimensions and specifications
| Model | GRANIT WBA100 |
| Overall dimensions | 165 mm wide × 160 mm high |
| Shackle diameter | 16 mm |
| Horizontal clearance | 77 mm |
| Vertical clearance | 65 mm |
| Weight | 1,880 g |
| ABUS security level | 20/20 |
| EAN | 4003318271618 |
Independent security classifications
- Sold Secure Powered Cycle Gold
- Sold Secure Pedal Cycle Diamond
- ART 4021
- SBSC certified
Security classifications describe the anchor itself. Always check any insurer's requirements for the complete locking setup, including the chain, lock, installation method and the part of the vehicle being secured.
Installation and everyday use
Install the WBA100 only into a strong, suitable wall or floor, following the supplied ABUS instructions. The mounting accessories are included, but the tools required for installation are not listed as supplied. If you are unsure about the substrate or installation, use a competent professional.
This is intended as a permanent fitting and can only be removed with considerable effort after correct installation. Obtain the property owner's permission before fitting it in rented accommodation. Measure your chain links and planned mounting area against the listed clearance and overall dimensions before ordering.
What is included?
- ABUS GRANIT WBA100 wall / floor anchor
- ABUS mounting accessories
A security chain and lock are not included.
Questions and answers
Can the WBA100 be mounted on a wall?
Yes. ABUS specifies both wall and floor installation, provided the mounting surface is suitable.
Can it be installed outdoors?
Yes. ABUS describes the WBA100 as weatherproof and suitable for indoor or outdoor use.
What is the difference between the WBA100 and WBA75?
The WBA100 is the larger, heavier option with a 16 mm shackle, 77 × 65 mm clearance and ABUS Security Level 20/20. The WBA75 is more compact, with a 14 mm shackle, 65 × 57 mm clearance and Security Level 15/20.
