Product Details

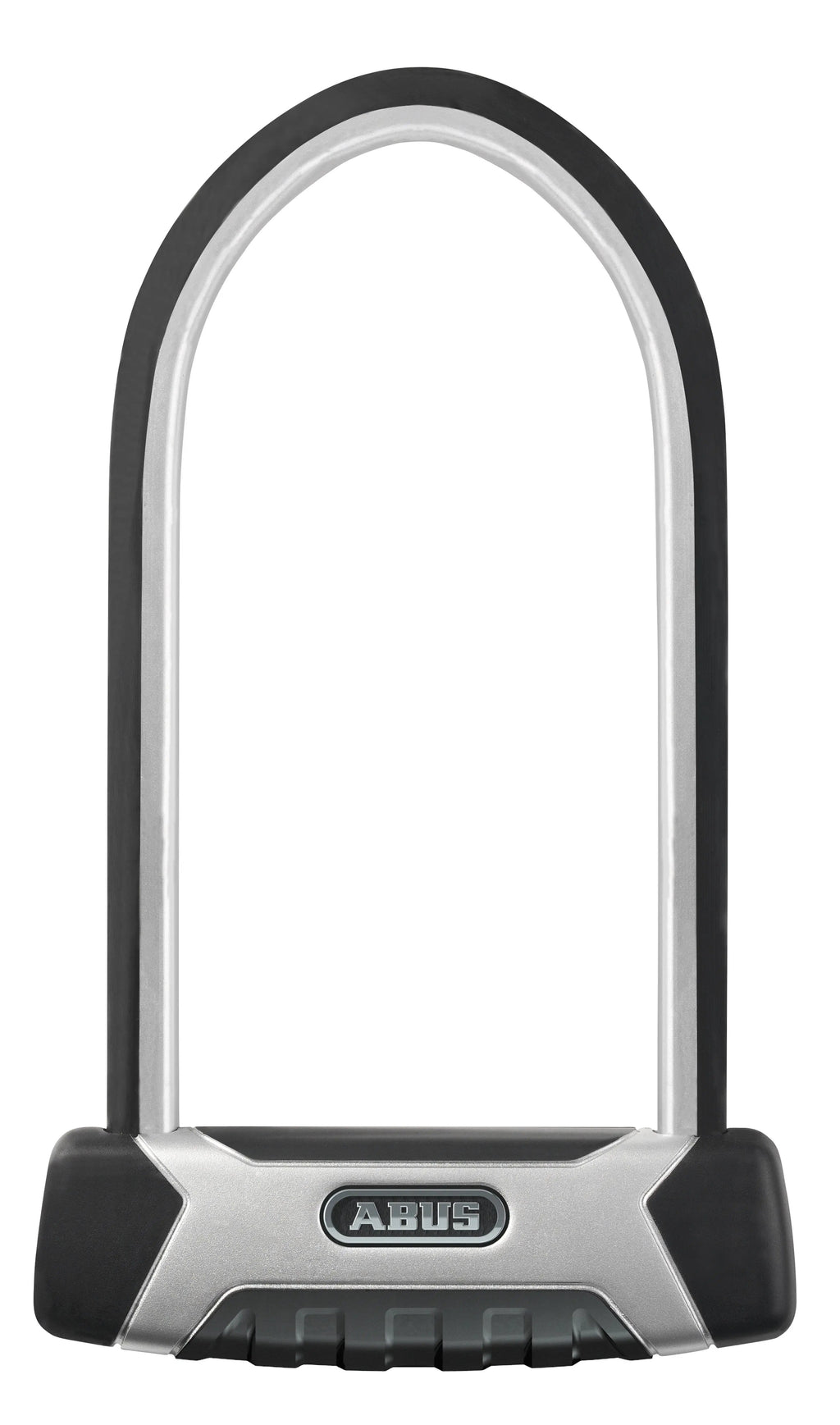

The ABUS GRANIT XPlus 540/160HB300 Motorcycle U-Lock is a high-security mechanical lock for riders who need substantial protection for a motorcycle or scooter. Its HB300 shackle provides useful reach, while the hardened-steel construction, double locking and patented ABUS Power Cell technology are designed to resist impact and pulling attacks.
Security and construction
- ABUS Security Level 15/20 for high-risk parking situations.
- 13 mm square parabolic shackle, measuring 17 mm including its protective coating.
- Shackle, lock body and structural locking components made from specially hardened steel.
- Double-locking mechanism secures the shackle at both sides of the lock body.
- Patented ABUS Power Cell technology provides additional resistance to impact and pulling attacks.
- ABUS XPlus cylinder is designed to resist manipulation such as picking.
- Automatic keyhole cover helps protect the cylinder from dirt and corrosion.
- Purely mechanical operation with no alarm, battery or charging requirement.
Technical specifications
| Model | GRANIT XPlus 540/160HB300 |
| ABUS security level | 15/20 |
| Manufacturer-listed height | 299 mm |
| Manufacturer-listed width | 108 mm |
| Shackle | 13 mm square parabolic steel, 17 mm with coating |
| Weight | 1,656 g |
| Locking type | Key |
| Colour | Black |
| EAN | 4003318188947 |
Fit and use
ABUS recommends this U-lock for motorcycles and scooters where there is a high risk of theft. Before ordering, compare the manufacturer-listed 299 × 108 mm dimensions and 17 mm coated shackle thickness with the intended route through the wheel, frame or anchor point. Motorcycle geometry varies, so these external product dimensions should not be treated as guaranteed internal clearance.
Where the motorcycle allows, route the lock through a substantial part of the machine and a fixed anchor. For longer stops, combine it with a second independent security device. No mechanical lock can guarantee that theft will be prevented.
Supplied items
- ABUS GRANIT XPlus 540/160HB300 U-lock.
- Two keys.
- ABUS Code Card for ordering additional or replacement keys.
A chain, alarm and transport bracket are not listed as supplied with this version.
Questions and answers
Does the GRANIT XPlus 540 have an alarm?
No. It is a mechanical key-operated U-lock and does not require batteries.
Is this suitable for a motorcycle?
Yes. ABUS specifically recommends the GRANIT XPlus 540 for securing motorcycles and scooters, subject to checking the lock dimensions against the intended mounting point.
Can replacement keys be ordered?
Yes. Keep the supplied ABUS Code Card, which carries the information needed for additional or replacement keys.
