Product Details

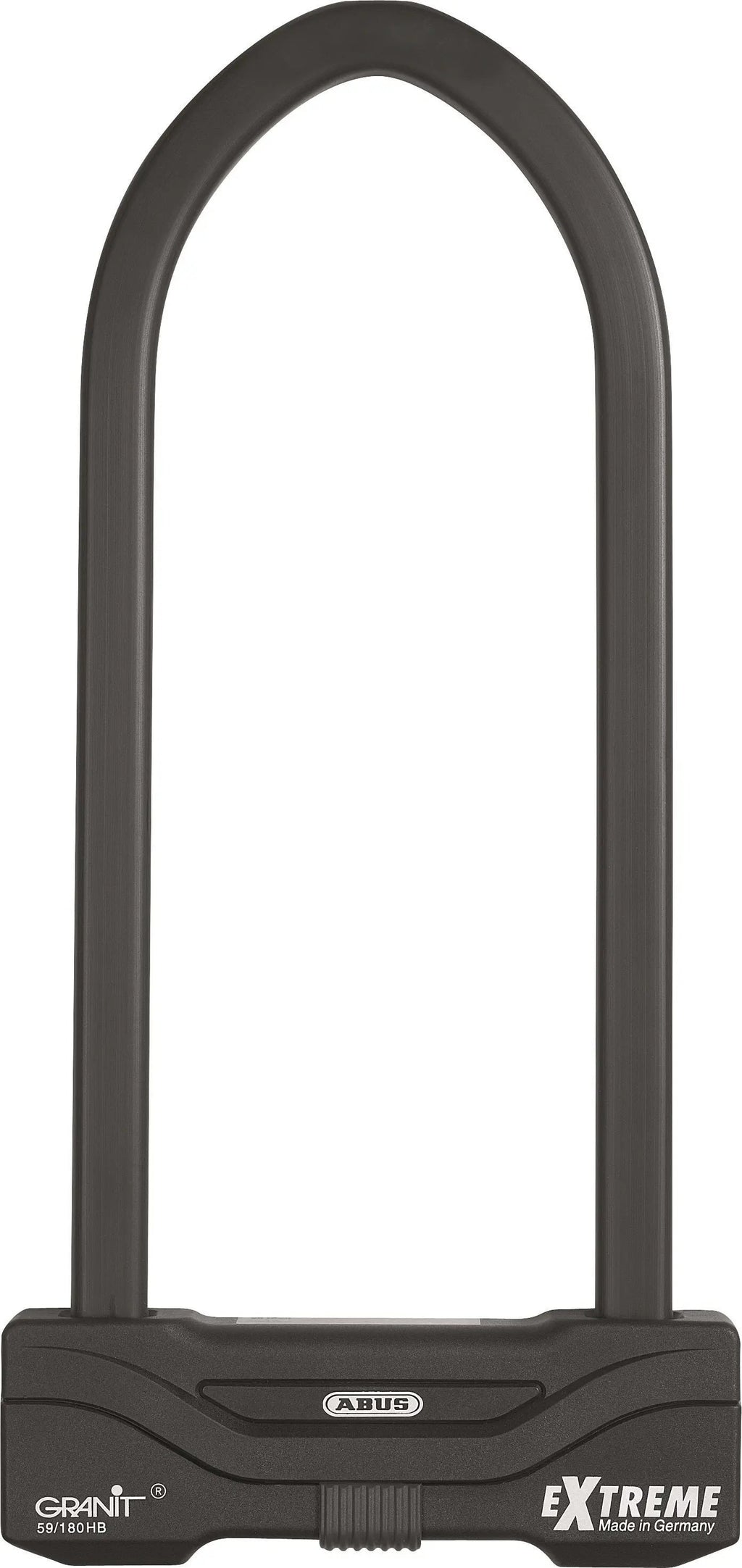

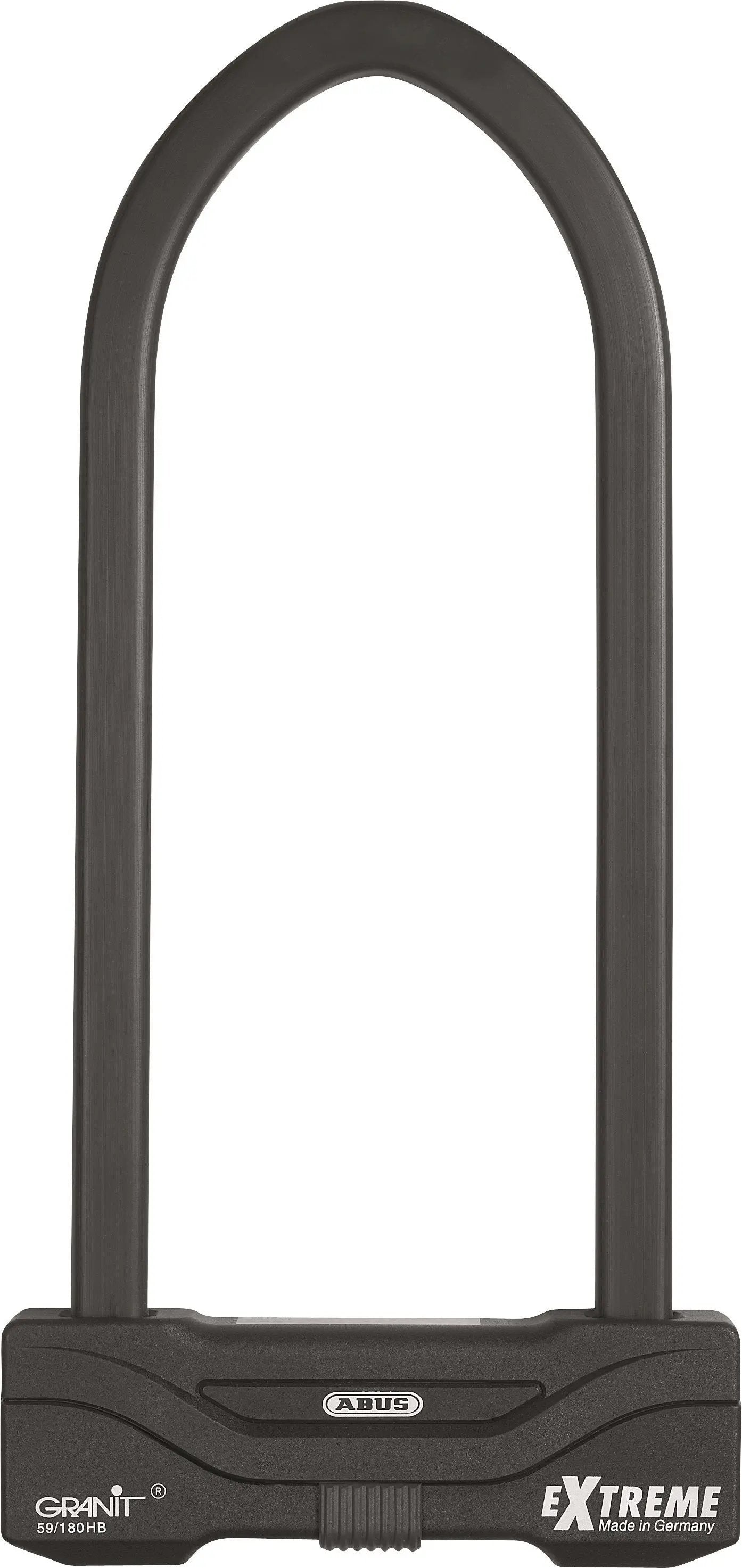

The ABUS GRANIT Extreme XPlus 59/180HB310 Motorcycle U-Lock is a heavy-duty, key-operated security lock for riders who need strong mechanical protection in areas with a high theft risk. This Black version uses the longer 310 mm shackle in the Moto Central GRANIT Extreme 59 range, providing greater reach than the HB260 model.
ABUS recommends the GRANIT Extreme 59 for protecting high-value motorcycles and bicycles. It is a mechanical U-lock without an alarm or battery, making it suitable as a robust primary lock or as part of layered security with a compatible fixed anchor or chain.
Security construction
- 16 mm square parabolic shackle, measuring 19 mm including its protective coating
- Double-locking mechanism secures the shackle in the lock body
- Shackle, lock body and structural locking components made from specially hardened steel
- ABUS XPlus cylinder designed for high resistance to manipulation such as picking
- Manual keyhole cover helps protect the cylinder from dirt and corrosion
59/180HB310 dimensions and specification
- Manufacturer-listed height: 310 mm
- Manufacturer-listed width: 111 mm
- Manufacturer-listed coated shackle diameter: 19 mm
- Weight: 3.06 kg
- Locking type: key
- Colour: Black
- EAN: 4003318586088
These are ABUS's overall listed dimensions rather than a guarantee of clearance for a particular wheel or frame. Check the available space on your motorcycle before ordering, including access around spokes, discs, brake lines, bodywork and any intended anchor point.
Transport and compatibility
The optional ABUS SH59 holder can carry the lock on suitable round motorcycle frame tubes measuring 12 to 17 mm in diameter. Because this version has a shackle height above 300 mm, ABUS also lists the GIVI M6M Monolock adapter plate as a compatible integrated mounting option. Both mounting accessories are sold separately, and the motorcycle must provide a suitable fitting location.
Supplied items
- ABUS GRANIT Extreme XPlus 59/180HB310 U-lock
- Two keys
- ABUS Code Card for ordering additional or replacement keys
Practical security guidance
Pass the shackle through a solid part of the motorcycle and, where the geometry allows, secure the bike to a fixed object. Avoid trapping brake hoses or delicate components. For longer parking periods, ABUS recommends adding a suitable connection point such as a chain or ground anchor.
Questions and answers
What is the difference between the HB310 and HB260 versions?
The HB310 has a 310 mm manufacturer-listed shackle height and weighs 3.06 kg. The shorter HB260 measures 260 mm high and weighs 2.7 kg, making it more compact where the additional reach is not required.
Does this lock have an alarm?
No. It is a purely mechanical, key-operated U-lock and requires no batteries.
Are the transport mounts included?
No. The compatible SH59 holder and GIVI M6M Monolock adapter plate are separate accessories.
